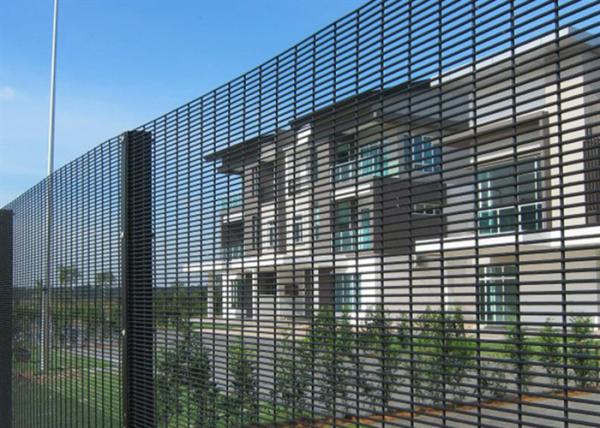

Description of 358 Security Fencing
ANTI CLIMB FENCE is the ultimate heavy duty welded mesh panel providing the highest degree of security with excellent see through visibility. It has toe and finger proof profile. With spacing specification of 75mm x 12.5mm, it is impossible for fingers and toes to go through. Our anti-climb fence is perfect as a guarded fence system because of its exclusive thickness, anti-cutting materials and its framework is very strong resistant and hard to uninstall. With our excellent anti-climb fence supply, clients can enjoy the greatest relaxation and secured protection from inside of your own.
Panel size:Height x Length: 2000x2200mm
Wire diameter: 4mm
Mesh Size: 12.7x76.2mm
Surface Treatment: electro galvanized wire welded, then PVC coated
Fence Post: 60x60x2x2500mm
Surface Treatment:galvanized pipe PVC coated
Flat Bar:60x5x2000mm
Surface Treatment: Iron flat bar PVC coated
With Plastic cap and bolts and nuts
Specifications of 358 Security Fencing
| Specification of 358 Security Fencing |
| Mesh Opening | Wire Diameter | Panel Height | Panel Width | Post Type |
12.7x76.2mm
(0.5'' x 3'') | 3/3.5/4mm | 1.2-6m | 2.0-3.1m | Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm | Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm |
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating. |
| Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized. |
| Note:The fence can be customized according to your required if above specification is not satisfied with you. |
| 358 fence | 2.1m | 2.4m | 3.0m |
| 358 fence hight | 2134mm | 2438mm | 2997mm |
| 358 fence width | 2515mm | 2515mm | 2515mm |
| 358 fence hole size | 12.7*76.2mm | 12.7*76.2mm | 12.7*76.2mm |
| wire | 4mm | 4mm | 4mm |
| wire | if need other wire diameter can order |
| 358 fence posts | 60*60*3mm | 60*60*3mm | 60*60*3mm |
| 358 fence posts length | 2.8m | 3.1m | 4.0m |
| no of fixings | 8 | 9 | 11 |
Features of 358 Security Fencing
Effective Deterrence
The DutyGuard security fence system is designed to present a strong barrier against attack, featuring heavy welded wire panels that deters vandalism and break-ins, while offering critical visibility.
Anti-Cut & Anti-Climb
DutyGuard security mesh protects against both cutting and climbing, with heavy gauge mesh and small mesh openings that resist common cutting tools and hand or foot holds.
Long Service Life
High quality galvanized steel and aluminum components provide for a long service life. This system is also available with a super-durable, Architectural Grade Powder Coating.
Superior Coating
DutyGuard is available with Betafence USA’s exclusive super-durable powder coating, protecting the fence and gates from weather and U.V. aging. This ensures the barrier will retain its appearance and structural integrity for many years, with a minimum of upkeep or maintenance.
Surface treatment of 358 Security Fencing
1> Electric Galvanized Then PVC Coated(powder thickness 0.1mm)
2>Electric Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
3>Hot Dipped Galvanized Then PVC Coated(powder thickness 0.1mm)
4>Hot Dipped Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
5>Hot Dipped Galvanized After Welded(zinc coating: 40-500g/m²)
Application of 358 Security Fencing
As an anti-climb & anti-cut through barrier, 358 welded wire extra high security fence is designed with maximum security in mind. It is ideally suitable for electronic alarm and detection systems, fencing in prisons, military sites, and airports, industrial and commercial properties, warehouses, power plants, laboratories, secure hospitals, schools, parks, leisure and recreational areas. 358 fence will give them a long lasting and secure perimeter protection with attractive appearance. Generally, 3.60 m height fence is used in schools, parks, leisure and recreational areas, 5.20 m height fence widely used in prison and military establishments.
