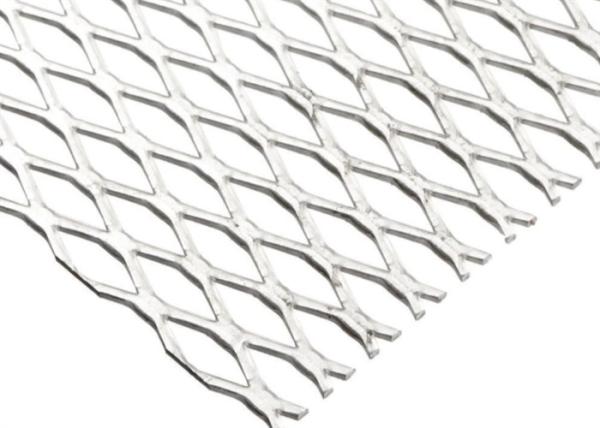

Low Carbon Steel / Aluminium 4ft X 8ft Diamond Hole For Screen 3.0mm Thick
Product Description of Expanded Metal Sheet
* Material: Low carbon steel sheet, cold rolled sheet, aluminum sheet,stainless steel sheet
* Processing mode: Deep stamping and drawing process
* Classification:
I. Electric/Hot dipped galvanized expanded mesh;
II. Copper plated expanded mesh;

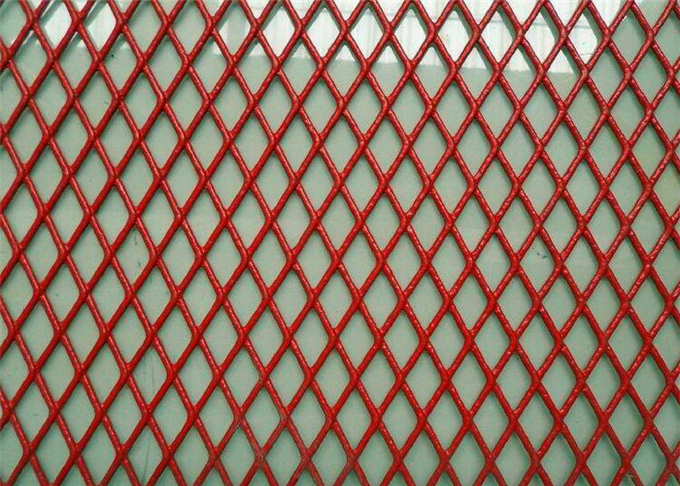

III. PVC coated expanded mesh;
IV. Aluminum expanded mesh.
Specification of Expanded Metal Sheet
| L.W.M. | S.W.M. | Strand Width | Strand Gauge | Approx. Kg/M2 |
| 6.05 | 3.38 | 0.8 | 0.5 | 2.1 |
| 10.24 | 5.84 | 0.8 | 0.5 | 1.2 |
| 10.24 | 5.84 | 1.2 | 0.9 | 3.2 |
| 14.27 | 5.84 | 1.2 | 0.9 | 3.2 |
| 19.05 | 7.42 | 1.2 | 0.9 | 3.4 |
| 5.8 | 3.5 | 0.8 | 0.6 | 2.1 |
| 19 | 7.4 | 1.7 | 1.0 | 3.4 |
| 30.5 | 11.7 | 2.4 | 1.6 | 4.9 |
| 30.5 | 11.7 | 2.4 | 1.2 | 3.8 |
| 38 | 16.5 | 2.2 | 1.6 | 3.4 |
| 50.8 | 22.5 | 2.5 | 2.5 | 4.4 |
| 50.8 | 22.5 | 3 | 1.6 | 3.4 |
| 50.8 | 22.5 | 3.9 | 3 | 8.1 |
| 50.8 | 22.5 | 3.1 | 3 | 6.5 |
| 76.2 | 33.9 | 3.5 | 3 | 4.9 |
| 85.7 | 40.6 | 3.2 | 3 | 3.7 |
| 101.6 | 50.8 | 5 | 3 | 4.7 |
| 101.6 | 50.8 | 3.4 | 3 | 3.1 |
| 114.3 | 39.3 | 4.6 | 3 | 5.4 |
| 200 | 75 | 6.3 | 3 | 3.6 |
Features of Expanded Metal Mesh
1.Continuity--the mesh is formed from a single piece of metal.
2.Environment friendly--no wasteful of material.
3.High strength--higher strength to weight ration then metal sheet.
4.Adherence--anti slip surface.
5.Good rigidity--premium reinforcement properties.
6.Good conductivity--highly efficient conductor.
7.Good resistance to corrosion.

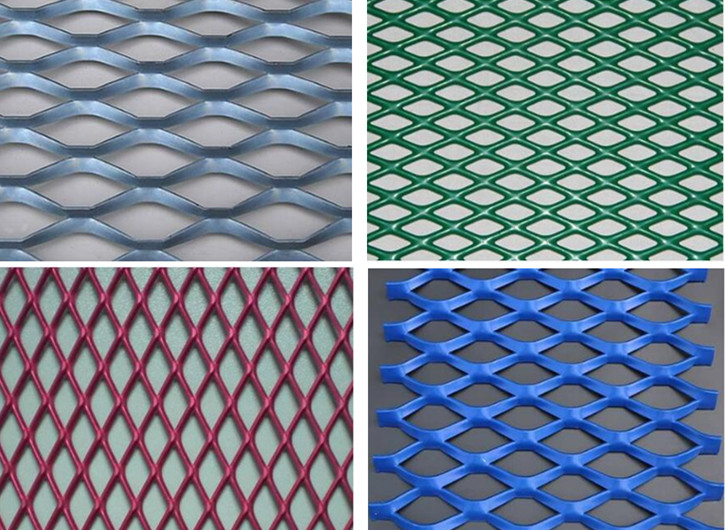

Surface Treatment of Expanded Metal Mesh
1.PVC coated
2.Powder coated
3.Anodized
4.Paint
5.Fluorocarbon spraying
6.Polishing
Application of Expanded Metal Sheet
- Galvanised expanded mesh is usually used for exterior construction.
- bookshelves, storage shelves, lampshades, fireplace screens, grilles, room partition and air filters.
- Air and liquid filters
- Ventilation system
- Outdoor furniture
- Speaker grille
- Ceiling, floor, door
- Security wall, machine and window guarding protection
- Shelves
- Concrete reinforcement
- Walkway and stair treads
Package of Expanded Metal Sheet
1. On pallet with waterproof cloth,the biggest width is 1500mm
2. In wooden case with waterproof paper
3. In carton box
4. In roll with woven bag,the biggest width is 3000mm
5. In bulk or In bundle
