Galvanized High Strength Gabion Mesh Eco-Durable Easy Install Landscape Retaining Garden
Product Introduction:
Premium Galvanized Gabion Wire Mesh is a versatile structural solution designed for landscape engineering, retaining walls, garden projects, and erosion control. Built with high-strength galvanized steel wire, it offers exceptional durability, corrosion resistance, and eco-friendliness. The mesh features easy installation, making it ideal for both commercial and residential applications, ensuring stable soil retention and aesthetic appeal.
Data Sheet:
| Parameter | Details |
| Material | High-carbon steel wire, hot-dip galvanized (Zn-Al alloy coating optional) |
| Wire Diameter | 2.0mm - 4.0mm (standard: 2.7mm) |
| Mesh Aperture | 60x80mm, 80x100mm, 100x120mm (customizable) |
| Panel Size | Standard: 2m x 1m, 3m x 1m (custom lengths up to 6m) |
| Tensile Strength | ≥380 MPa |
| Corrosion Resistance | 500+ hours salt spray test (ISO 9227) |
| Weight | 5kg - 20kg per panel (dependent on aperture and wire diameter) |
| Certifications | CE, ISO 9001, ISO 14001 |
- Wire Drawing: High-quality steel rods are drawn into precise-diameter wires.
- Galvanization: Wires undergo hot-dip galvanizing for a dense zinc layer (≥245g/m²), ensuring long-term anti-rust performance.
- Mesh Weaving: Wires are woven into hexagonal meshes using automated machines for uniform aperture and tension.
- Panel Fabrication: Meshes are cut into panels and reinforced with binding wires at intersections for structural integrity.
- Quality Inspection: Each panel is tested for wire thickness, mesh accuracy, and corrosion resistance before packaging.
- High Strength & Durability: Galvanized coating prevents rust, while hexagonal structure distributes load evenly for superior stability.
- Eco-Friendly: Permeable design allows plant growth, blending with natural landscapes and supporting biodiversity.
- Easy Installation: Panels are lightweight and flexible, requiring no specialized tools—simply fill with stones and connect using provided wires.
- Cost-Effective: Low maintenance, long lifespan, and reusable design reduce total project costs.
- Customizable: Available in various sizes, coatings (e.g., PVC/PE coated), and colors to suit project requirements.
- Corrosion-Resistant: Suitable for harsh environments (coastal areas, high humidity).
- Flexible Structure: Adapts to ground settlement without cracking, reducing structural failure risks.
- Permeable Design: Enhances water drainage, preventing hydrostatic pressure buildup in retaining walls.
- Aesthetic Versatility: Can be planted with vegetation for green walls or used as decorative garden barriers.
- Landscape Engineering: Garden edging, riverbank protection, slope stabilization.

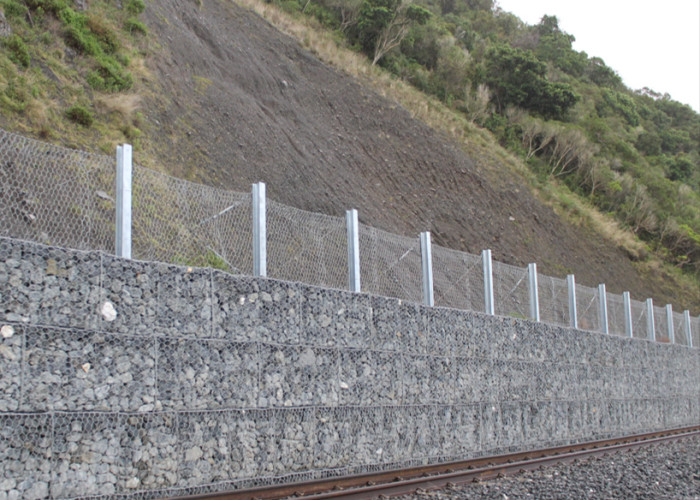

- Retaining Walls: Commercial building foundations, highway embankments, basement retaining structures.
- Erosion Control: Coastal erosion protection, river channel lining, hillside stabilization.

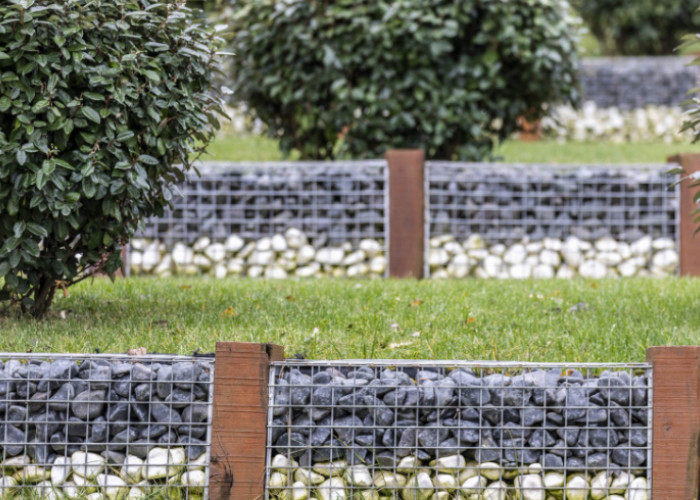

- Gardening Projects: Decorative fencing, planter boxes, wildlife habitats (e.g., bird/bee walls).
Q1: How long does the galvanized coating last?
A: Hot-dip galvanized mesh lasts 30+ years in standard environments; for harsh conditions, choose Zn-Al alloy or PVC-coated options (50+ years).
Q2: Can I install the mesh myself?
A: Yes! Panels come with installation guides and binding wires. No heavy machinery is required—simply assemble and fill with stones.
Q3: What size stones should I use?
A: Recommended stone size: 80-150mm. Larger stones provide better stability for heavy-duty applications.
Q4: Is customization available?
A: Yes. We offer custom wire diameters, mesh sizes, panel dimensions, and coatings. Contact us for OEM/ODM services.
Q5: How do I prevent vegetation from growing through the mesh?
A: Add a geotextile fabric layer behind the mesh before filling with stones to control plant growth while maintaining permeability.
For bulk orders, customization, or technical specifications, please email us at sales@yuanhaiwiremesh.com or call +86 13831851511
